| Models | U.S. Products Pegasus Pro 500H DV/DC Package |
| Heater | 1750 W in-line, on/off switch |
| Pump Pressure | 50-500 PSI, adjustable (piston pump with pressure unloader) |
| Vacuum Motors | Two 5.7 in 3-stage, top-mounted in parallel |
| Airflow | 200 CFM |
| Water Lift | 100 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Vacuum Shut-Off | Dual ball float |
| Vacuum Inlet | 1.5 in or 2.0 in (two versions) |
| Power Cords | Two 25 ft, 12/3 |
| Amp Draw | 15 A per cord |
| Voltage | 120 V |
| Wheels | 4 in front casters, 12 in non-marking rear wheels |
| Drain | Drain hose |
| Weight | 108 lb |
| Dimensions (L x W x H) | 32 x 24 x 38.5 in |
| Included Wand | 13 in Sharp Shooter (05-10030), 13 in cleaning path, 6.5 lb |
| Wand Construction | Rotationally molded head, powder-coated 1.5 in 6061-T6 aluminum tube, stainless steel 2-jet manifold |
| Wand Jets | #1 jets installed (300-500 PSI); two #1.5 jets included (100-300 PSI) |
| Included Hose | 25 ft hose set |
| Model Numbers | 05-10037-001 (machine 05-10037, 13 in Sharp Shooter wand 05-10030, 25 ft hose set) |
Technical specs may include optional equipment that is not included with all units.
New U.S. Products Pegasus Pro 500H Heated Carpet Extractor with 13" Sharp Shooter Wand & 25' Hose
Our Take (from the SES Sales Team)
“This is the Pegasus Pro 500H set up to work out of the box: the heated, dual-vac extractor plus U.S. Products' 13-inch Sharp Shooter wand and a 25-foot hose set. It suits carpet cleaning contractors and facility crews who want one matched kit for commercial carpet, with a 1750-watt in-line heater and a pump that adjusts from 50 to 500 PSI.
The Sharp Shooter is a sensible match. Its powder-coated aluminum tube and stainless manifold come with #1 jets installed for 300 to 500 PSI cleaning, and a set of #1.5 jets in the box for low-pressure work between 100 and 300 PSI. On the machine, two 3-stage vacuum motors in parallel are rated at 200 CFM and 100 inches of lift for good water recovery.
Plan for two separate 15-amp circuits, one per cord, and use short spray strokes so the in-line heater keeps up. A 13-inch carpet wand isn't an upholstery tool, so add a hand tool such as the 4-inch Trident UPH if you clean furniture.”

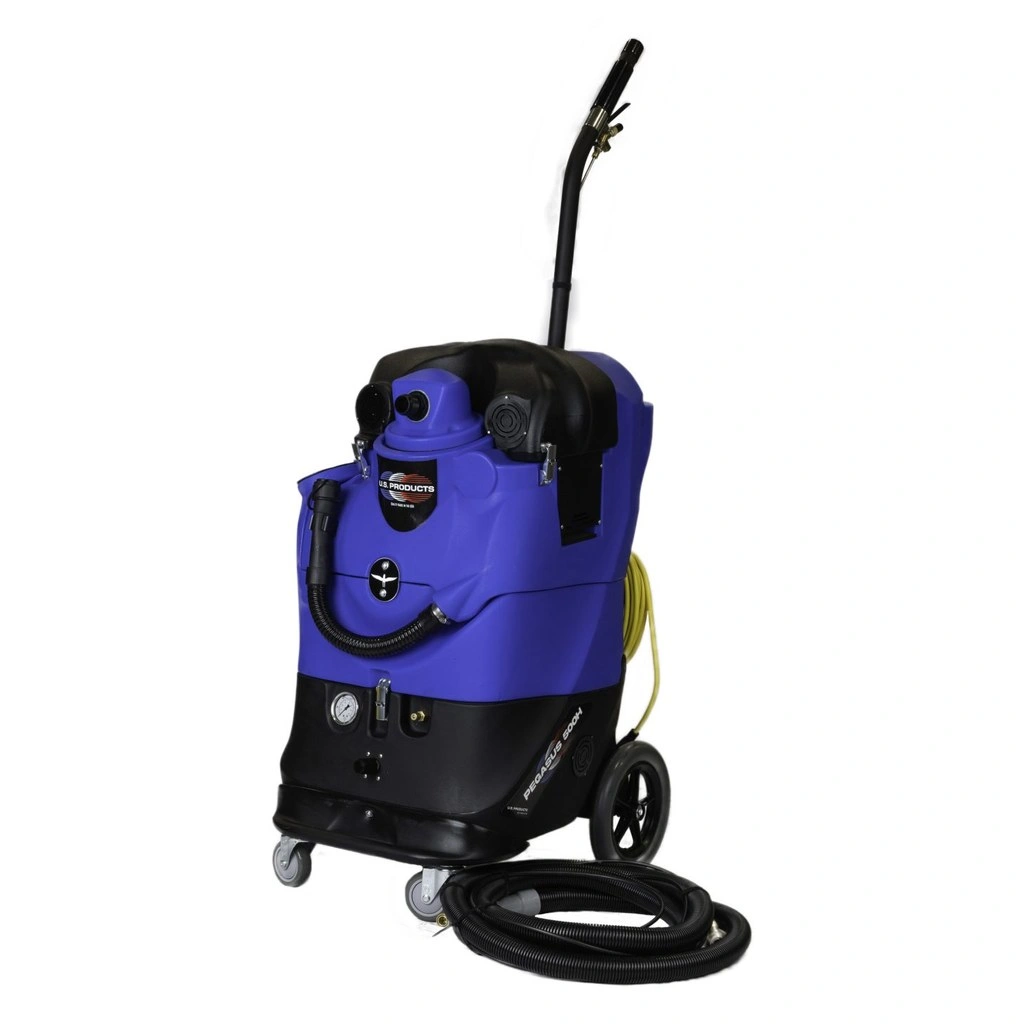

The heated Pegasus Pro 500H with a matched 13 in Sharp Shooter wand and hose set.

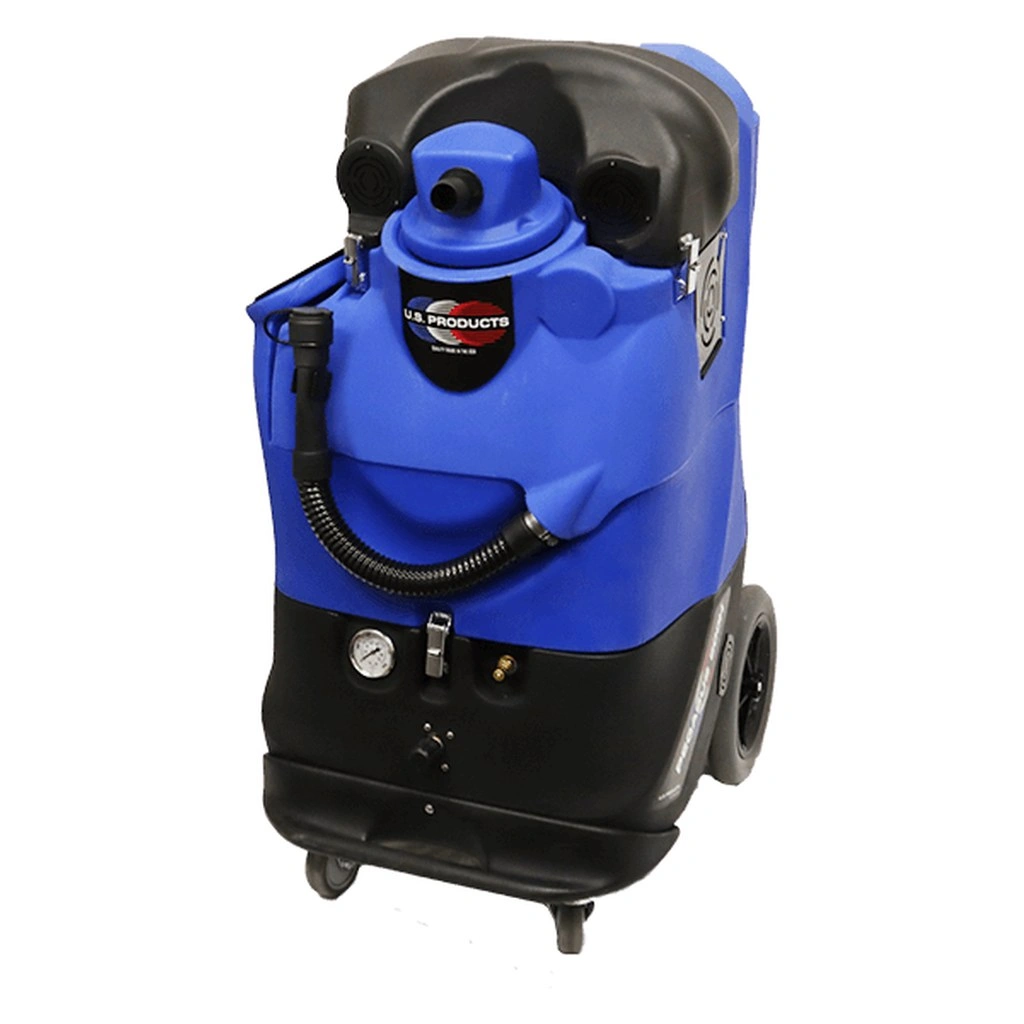

This U.S. Products package (05-10037-001) combines the Pegasus Pro 500H DV/DC heated extractor with a 13 in Sharp Shooter carpet wand and a 25 ft hose set. The extractor has a 1750 W in-line heater, an adjustable 50-500 PSI piston pump and two top-mounted 3-stage vacuum motors rated at 200 CFM and 100 in of lift. It holds 12 gal of solution and 12.5 gal of recovery.

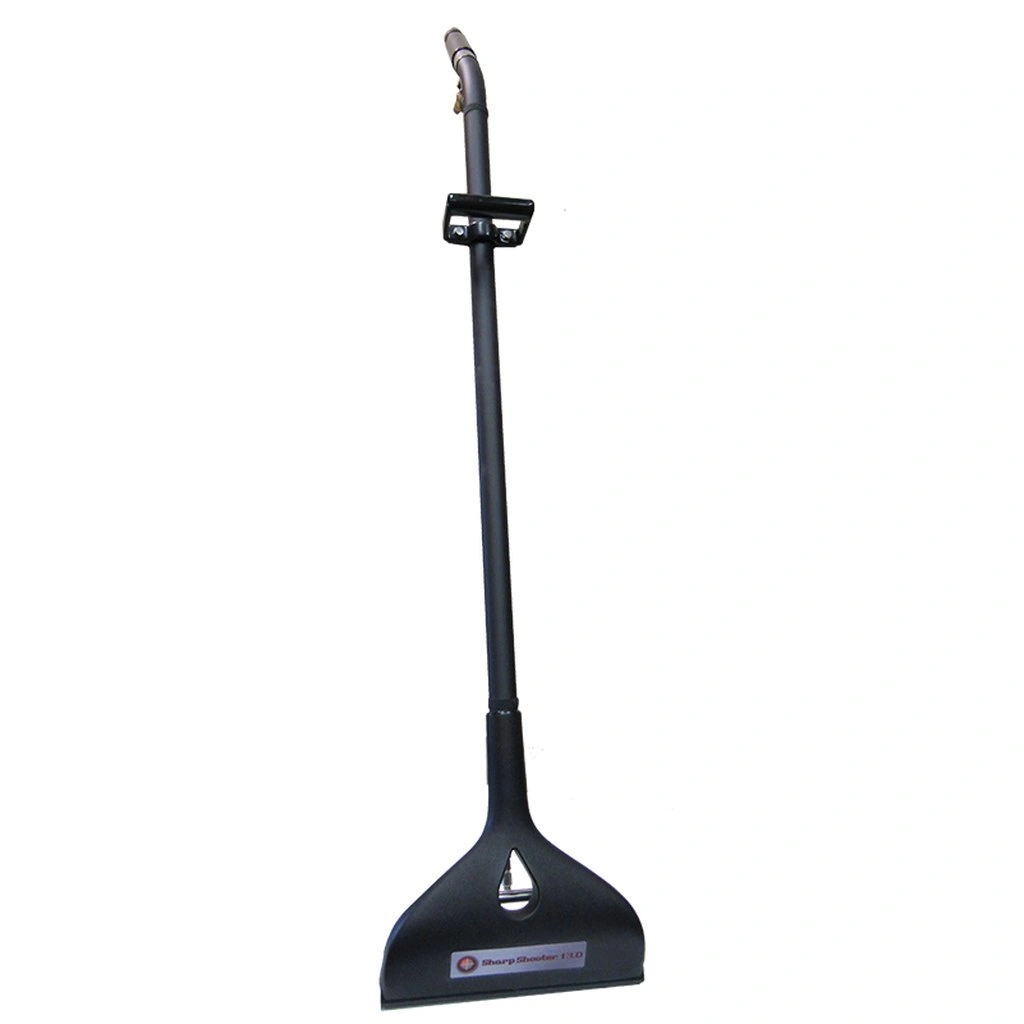

The Sharp Shooter 13 in wand uses a rotationally molded head, a powder-coated 1.5 in 6061-T6 aluminum tube and a stainless steel manifold with two jets. It comes with #1 jets installed for 300-500 PSI cleaning and two #1.5 jets for 100-300 PSI, plus a composite glide with an airtight gasket seal, a check valve at the manifold and a filter at the spray valve. It weighs 6.5 lb.
Includes:
- Pegasus Pro 500H extractor
- Two 25 ft power cords
- Priming hose
- 13 in Sharp Shooter wand with spare #1.5 jets
- 25 ft hose set
Features:
- Includes 13 in Sharp Shooter wand and 25 ft hose set
- 1750 W in-line heater and 50-500 PSI pump
- Two 3-stage vacuum motors, 200 CFM and 100 in of lift
- 12 gal solution and 12.5 gal recovery tanks
- Two 25 ft 12/3 cords at 15 A each
