| Models | U.S. Products Pegasus 500H |
| Heater | 1750 W in-line, resettable breaker |
| Pump Pressure | 50-500 PSI, adjustable, with unloader valve |
| Vacuum Motors | Two 3-stage, top-mounted in parallel |
| Airflow | 200 CFM |
| Water Lift | 100 in |
| Solution Tank | 12 gal |
| Recovery Tank | 12.5 gal |
| Vacuum Shut-Off | 1.5 in ball float and airflow check valve for each vacuum motor |
| Vacuum Inlet | 1.5 in or 2.0 in (two versions) |
| Power Cords | Two 25 ft, 12/3 |
| Amp Draw | 15 A per cord |
| Voltage | 120 V |
| Wheels | 4 in front casters, 12 in non-marking rear wheels, 3 in loading wheels |
| Drain | Drain hose |
| Model Numbers | 05-10034 |
Technical specs may include optional equipment that is not included with all units.

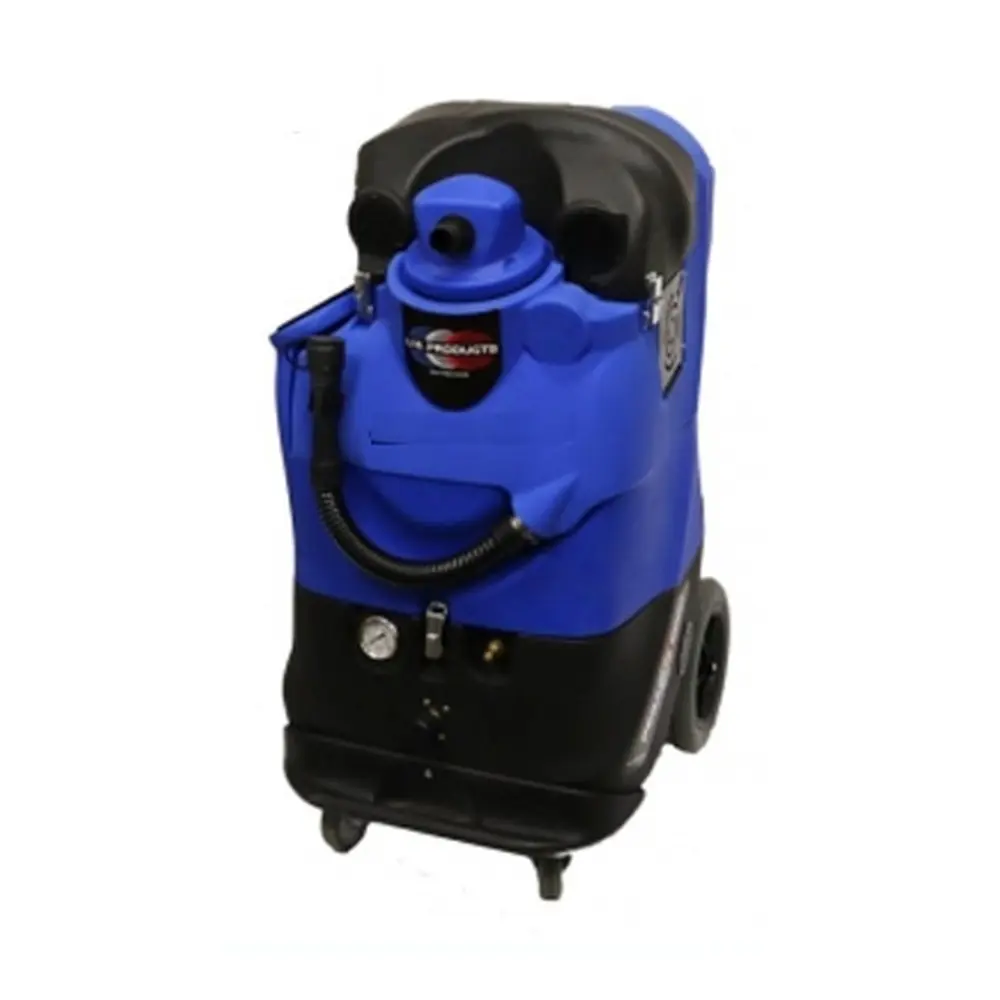

New U.S. Products Pegasus 500H Heated Carpet Extractor
Our Take (from the SES Sales Team)
“The Pegasus 500H is U.S. Products' heated, dual-vac portable for crews that clean commercial carpet one hour and upholstery the next. A 1750-watt in-line heater warms the solution on its way to the wand, the pump adjusts anywhere from 50 to 500 PSI, and two top-mounted 3-stage vacuum motors running in parallel are rated at 200 CFM and 100 inches of water lift.
The details are built around real buildings. It runs on two 15-amp cords, so you plug into two ordinary circuits instead of hunting for a 20-amp outlet. Large 12-inch rear wheels and small loading wheels make it a one-person job to get into a van or up a flight of stairs, and each vacuum motor has its own ball float and check valve.
The trade-off comes with any in-line heater. U.S. Products notes it holds only a small amount of water, so long continuous passes cool off; short spray strokes keep the solution hot. If most of your work is tile, grout and stone, the Pegasus 1200 is a closer fit.”
A heated, dual-vac portable extractor that moves from carpet to upholstery.
The U.S. Products Pegasus 500H is an upright, heated portable carpet extractor. A 1750 W in-line heater with a resettable breaker heats the solution without a probe, and an adjustable 50-500 PSI pump with an unloader valve covers everything from upholstery to heavily soiled commercial carpet. U.S. Products offers the machine with a 1.5 in or 2.0 in vacuum inlet.
Two top-mounted 3-stage vacuum motors in parallel produce 200 CFM and 100 in of water lift. Each motor has its own 1.5 in ball float shut-off and airflow check valve, and a water diffuser at the vacuum inlet reduces turbulence and foaming in the recovery tank. The 12 gal solution tank, two 25 ft 15 A cords, wand holder and 12 in rear wheels round out the design.
Includes:
- Pegasus 500H extractor
- Two 25 ft power cords
Not included: Wand and hose set, sold separately
Features:
- 1750 W in-line heater with resettable breaker
- Adjustable 50-500 PSI pump with unloader valve
- Two 3-stage vacuum motors, 200 CFM and 100 in of lift
- Separate ball float and check valve for each vacuum motor
- Two 15 A cords, so no 20 A circuit is needed
