New Timberline M-Series Rider Floor Scrubber
Our Take (from the SES Sales Team)
“The Rider-M 28 Disk is for facilities that have outgrown a walk-behind. With 45 gallons of solution and 46 gallons of recovery, the operator spends more time scrubbing and less time refilling and dumping, and Timberline puts it at up to 4 hours of run time with a practical rate of about 18,000 square feet an hour. That is the range of a school district, a hospital, an airport concourse or a big-box store.
The 28-inch disk deck is the general-purpose, low-maintenance choice. Its two individually driven brushes take standard brushes or pads, so the same machine can run pads for daily cleaning and brushes for tougher or irregular floors. Controls are simple, with an easy scrub button and three pressure and three water settings, and the recovery tank tips back for battery access. RPS hand-builds it in Wisconsin on an all-steel frame with non-proprietary parts, which keeps service straightforward for any qualified technician.”
A 28-inch disk ride-on scrubber for large facilities

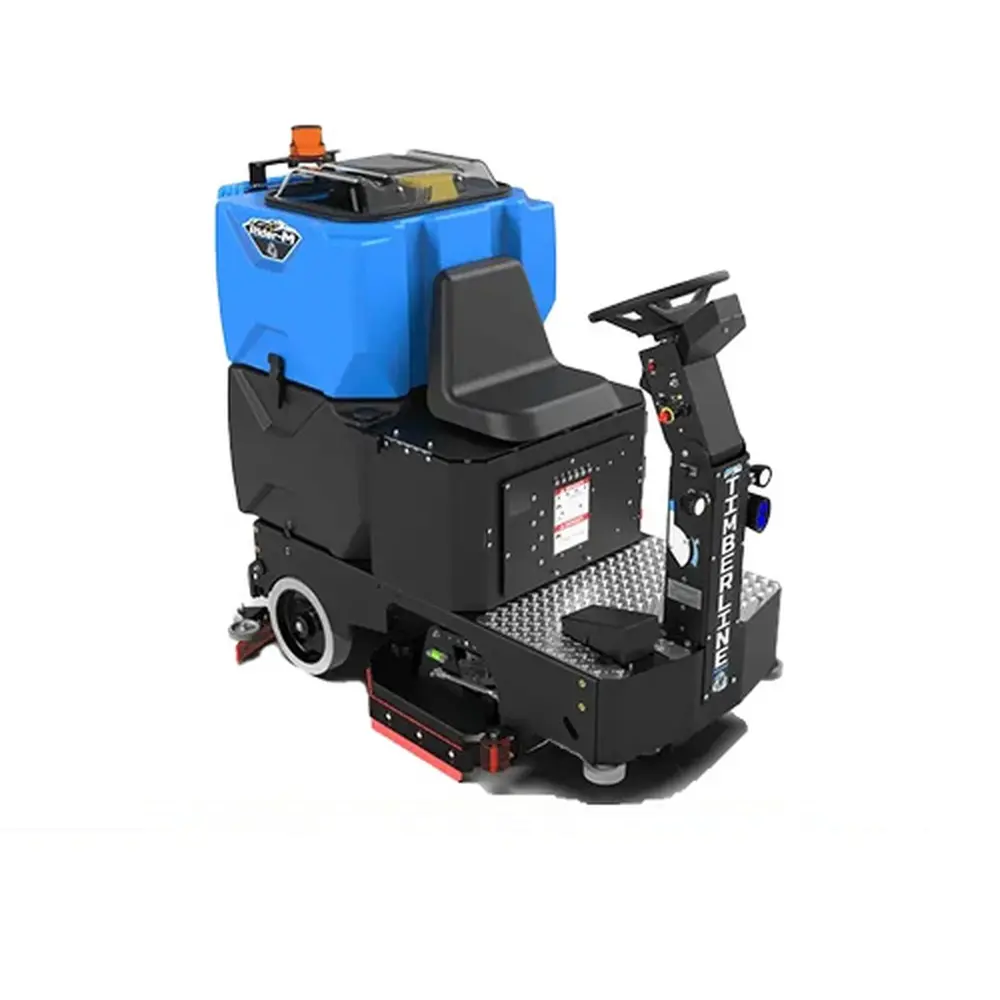

The Timberline Rider-M 28 Disk is a battery-powered ride-on floor scrubber built by RPS Corporation in Racine, Wisconsin, for large facilities such as schools, hospitals, airports and shopping centers. Its 28 in dual-disk deck takes brushes or pads for different floor types, and its 45-gallon solution and 46-gallon recovery tanks let it scrub for up to 4 hours on standard 240 Ah wet batteries. Timberline rates it at 38,500 sq ft/hr theoretical and 18,000 sq ft/hr practical productivity. The squeegee blades adjust without tools, and the whole machine is built on a steel frame.
Timberline options for the Rider-M include wet, AGM or lithium battery packages, a strobe, blue safety light and dual LED headlights for low-light areas, and a vac wand for picking up water in restrooms and under tables. The 17 in step-up height keeps getting on and off easy, and the recovery tank tips back for battery access.
Features:
- Dual disk deck with individually driven brushes takes brushes or pads and is Timberline's lowest-maintenance deck type
- Membrane and LCD controls with an easy scrub button, Eco mode, three scrub pressure settings, three water settings and three hour meters
- Recovery tank tips back for battery access; remote fill hose and a large clean-out port
- Breakaway squeegee, front-wheel drive and non-marking tires
- Non-proprietary parts, so any technician with basic knowledge of battery-powered equipment can make repairs
Rider-M 28 Disk
Specifications
| Models | Rider-M 28 Disk |
| Cleaning Path | 28 in (71 cm), dual disk |
| Scrub Motors | Two 0.75 hp (559 W), 270 rpm |
| Down Pressure | 120 lb (54 kg) |
| Squeegee Width | 37 in (94 cm) |
| Solution / Recovery Tank | 45 gal (170 L) / 46 gal (174 L) |
| Solution Flow | 0–0.6 gpm (0–2.3 L/min), stainless inline filter |
| Vacuum Motor | 0.8 hp (640 W), 3-stage; 70 in (178 cm) water lift, 70 CFM |
| Batteries | 24 V system, 240 Ah wet standard |
| Run Time | Up to 4 hours (standard batteries, low down pressure, options off) |
| Charger | Onboard, 27 A |
| Traction Drive | 0.75 hp (559 W), all-gear, sealed |
| Theoretical Productivity | 38,500 sq ft/hr (3,577 m²/hr) |
| Practical Productivity | 18,000 sq ft/hr (1,672 m²/hr) |
| Sound Level | 75 dBA |
| Step-Up Height | 17 in (43 cm) |
| Dimensions (L x W x H) | 63 x 35.8 x 52.5 in (160 x 91 x 133 cm) |
| Weight | 1,012 lb (459 kg) with batteries; 762 lb (346 kg) without |
| Construction | 3/16 in (4.8 mm) powder-coated steel frame; 5/16 in (7.9 mm) poly tanks |
| Model Numbers | XLR-28D |
Technical specs may include optional equipment that is not included with all units.
