| Models | MCM 600 |
| Sweeping Width, 2 Brushes | 102 in (2,600 mm) |
| Sweeping Width, 3 Brushes (optional front brush) | 142 in (3,600 mm) |
| Sweeping System | Mechanical, suction and filtering: central broom, 2 side brushes, vertical belt conveyor |
| Hopper | 7.8 cu yd (6 m³), stainless steel |
| Dump Height | 53 in (1,340 mm); 94 in (2,400 mm) high-dump option |
| Engine | Cummins four-cylinder diesel, 156 hp (115 kW) |
| Emissions | EPA Tier 4 Final, diesel particulate filter |
| Fuel Tank | 52.8 gal (200 L) |
| Fresh Water Tank | 132 gal (500 L); optional additional 264 gal (1,000 L) |
| Driving Speed | Up to 25 mph (40 km/h) |
| Working Speed | Up to 12.4 mph (20 km/h) |
| Area Performance, 2 Brushes | 559,700 sq ft/hr (52,000 m²/hr) at 12.4 mph (20 km/h) |
| Steering | Synchronized four-wheel steering |
| Turning Radius (Inside / Outside) | 8.99 / 15.94 ft (2.74 / 4.86 m) |
| Climbing Ability | 25% |
| Filtration | Polyester pocket filter (PM1), hydraulic filter shaker |
| Unladen Weight | 18,298 lb (8,300 kg) |
| Total Permissible Weight | 26,000 lb (11,793 kg) |
| Dimensions (L x W x H) | 233 x 83 x 116 in (5,924 x 2,115 x 2,940 mm) |
| Model Numbers | 1.999-052.0 |
Technical specs may include optional equipment that is not included with all units.

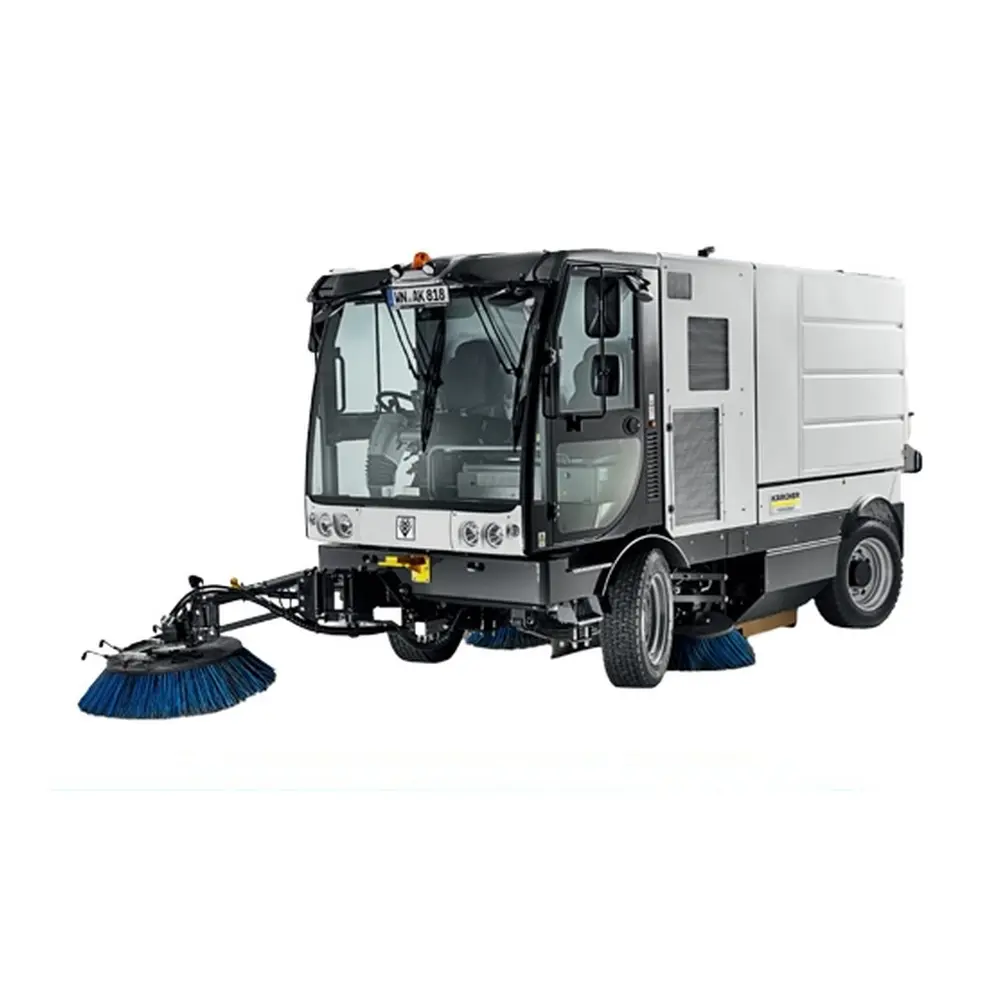

New Karcher MCM 600 102" Mechanical Street Sweeper
Our Take (from the SES Sales Team)
“For the longest time, in municipal and heavy industrial environments, if you needed a high-performance outdoor sweeper, the Tennant Sentinel ruled the roost. A few years ago, when Tennant stopped producing the Sentinel, a void was left, which has now been filled by the Karcher City Sweeper MCM 600.
With its vacuum system, dual side brushes, and its 7.8 cubic yard hopper, the MCM 600 can excel in both municipal and industrial applications. The MCM 600's all-wheel steering allows it to go places that other sweepers can't, saving the end user time previously wasted in positioning and repositioning around tight areas. Lastly, the MCM 600 also has an Eco mode to optimize the performance while adding some fuel savings to the bottom line. If you are looking for a sweeper that will be able to handle your toughest environments, while also providing a more efficient and maneuverable piece of equipment, the MCM 600 is just what you need!”
A mechanical and suction street sweeper for municipal streets and heavy industrial sites.
The Kärcher MCM 600 (1.999-052.0) combines mechanical pickup with suction and filtering. Two side brushes and a central broom feed a vertical belt conveyor into a 7.8 cu yd stainless steel hopper, while two hydraulic suction turbines pull in dust and light debris and a polyester pocket filter captures fine particles down to PM1. Sweeping width is 102 in with two brushes, or 142 in with the optional third front brush.
A 156 hp Cummins four-cylinder diesel meeting EPA Tier 4 Final drives an electronically controlled hydrostatic system with Eco and Power modes, a top driving speed of 25 mph and a working speed up to 12.4 mph. Synchronized four-wheel steering keeps the broom on line through turns, and Kärcher's CDS system adjusts central broom pressure automatically. The hopper dumps at 53 in, or 94 in with the high-dump option.
Includes:
- Central broom and two side brushes
- 7.8 cu yd stainless steel hopper
- Textile dust control filter
- Air conditioning
- Rear view camera
- Pneumatic driver seat
Not included: High dump, third front brush and other options, sold separately
Features:
- Mechanical, suction and filtering pickup in one machine
- Synchronized four-wheel steering
- Eco and Power drive modes
- Automatic central broom pressure control (CDS)
- Stainless steel hopper with optional 94 in high dump
