| Models | HDS 4.7/35 Pe Cage (120V AC burner) |
| Flow Rate | 4.7 gpm (17.8 L/min) |
| Pressure | 3,500 psi (241 bar) |
| Engine | Honda GX630 gasoline, 688 cc, electric start |
| Pump | Kärcher KT, belt drive |
| Burner | 120V AC, oil-fired |
| Steam Combination | Standard |
| High-Pressure Hose | 50 ft (15.2 m) wire braid with extended guard |
| Unloader | VRT100 |
| Rupture Disc | Rated to 7,000 psi (483 bar) |
| Float Tank | 2.5 gal (9.5 L), for high-pressure soap application |
| Trigger Gun | EASY!Force |
| Belt Drive | Cast iron pulleys, enclosed belt guard, TrueTrak belt tension |
| Controls | Burner on/off switch, adjustable thermostat, hour meter |
| Frame | 1-1/4 in powder-coated steel open frame, 8 vibration isolators |
| Shipping Weight | 890 lb (404 kg) |
| Shipping Dimensions (L x W x H) | 54 x 56 x 55 in (1372 x 1422 x 1397 mm) |
| Model Numbers | 1.575-604.0 |
Technical specs may include optional equipment that is not included with all units.

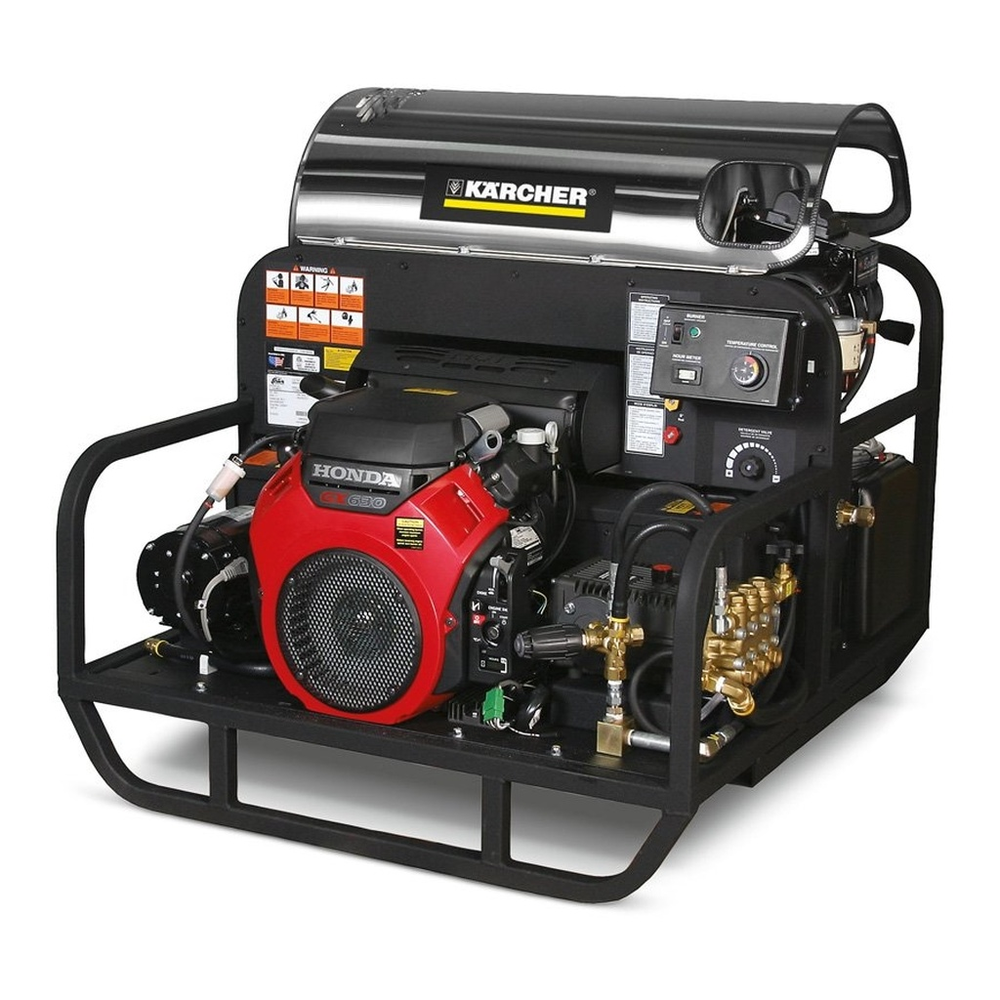

New Karcher Jalapao HDS 4.7/35 Pe Cage Hot Water Pressure Washer with 120V AC Burner
Our Take (from the SES Sales Team)
“The Jalapao HDS 4.7/35 Pe Cage is a heavy-duty hot water skid for mobile wash contractors, fleet and equipment yards, farms and plants that wash every day. An electric-start Honda GX630 drives a belt-driven Kärcher KT pump for 4.7 gpm at 3,500 psi, and an oil-fired burner provides the heat. This version, 1.575-604.0, uses a 120V AC burner.
What stands out is the industrial build. The open 1-1/4 in steel frame is made for bolting into a truck or onto a trailer, the engine and pump ride on a shock-mounted sub-frame with eight vibration isolators, and the belt is fully enclosed with TrueTrak tensioning. A 2.5 gal float tank handles soap and helps prevent pump cavitation, and steam combination is standard.
The trade-off is size and setup. Kärcher lists it at 890 lb crated, so this is a mounted machine, not one to roll around a shop. Kärcher also builds a 12V DC burner version (1.575-603.0), so compare the two before choosing.”
Oil-fired hot water skid with a 120V AC burner.
The Kärcher HDS 4.7/35 Pe Cage (1.575-604.0) is a Jalapao series oil-fired hot water skid with a 120V AC burner. A gasoline Honda GX630 engine (688 cc) with electric start powers a belt-driven Kärcher KT pump rated at 4.7 gpm and 3,500 psi. Steam combination comes standard, and the open frame is designed for mounting in a truck or on a trailer.
The frame is heavy-gauge 1-1/4 in powder-coated steel, and the engine and pump sit on a shock-mounted sub-frame with eight vibration isolators. Cast iron pulleys run inside an enclosed belt guard with TrueTrak belt tension. The machine also has a VRT100 unloader, a rupture disc rated to 7,000 psi, a 2.5 gal float tank, a 50 ft wire braid hose with extended guard and a control box with thermostat and hour meter.
Includes:
- EASY!Force trigger gun
- 50 ft wire braid high-pressure hose with extended guard
Not included: Battery (8.904-051.0) and stackless flue adapter, listed by Kärcher as options
Features:
- 4.7 gpm at 3,500 psi with belt-drive Kärcher KT pump
- Electric-start Honda GX630 engine
- 120V AC oil-fired burner, steam combination standard
- Shock-mounted sub-frame on 8 vibration isolators
- 2.5 gal float tank for high-pressure soap application
