| Models | HDS 4.7/35 Pe Cage (12V DC burner) |
| Flow Rate | 4.7 gpm (17.8 L/min) |
| Pressure | 3,500 psi (241 bar) |
| Engine | Honda GX630 gasoline, 688 cc, electric start |
| Pump | Kärcher KT, belt drive |
| Burner | 12V DC, oil-fired |
| Steam Combination | Standard |
| High-Pressure Hose | 50 ft (15.2 m) wire braid with extended guard |
| Unloader | VRT100 |
| Rupture Disc | Rated to 7,000 psi (483 bar) |
| Float Tank | 2.5 gal (9.5 L), for high-pressure soap application |
| Trigger Gun | EASY!Force |
| Belt Drive | Cast iron pulleys, enclosed belt guard, TrueTrak belt tension |
| Controls | Burner on/off switch, adjustable thermostat, hour meter |
| Frame | 1-1/4 in powder-coated steel open frame, 8 vibration isolators |
| Shipping Weight | 855 lb (388 kg) |
| Shipping Dimensions (L x W x H) | 54 x 56 x 55 in (1372 x 1422 x 1397 mm) |
| Model Numbers | 1.575-603.0 |
Technical specs may include optional equipment that is not included with all units.

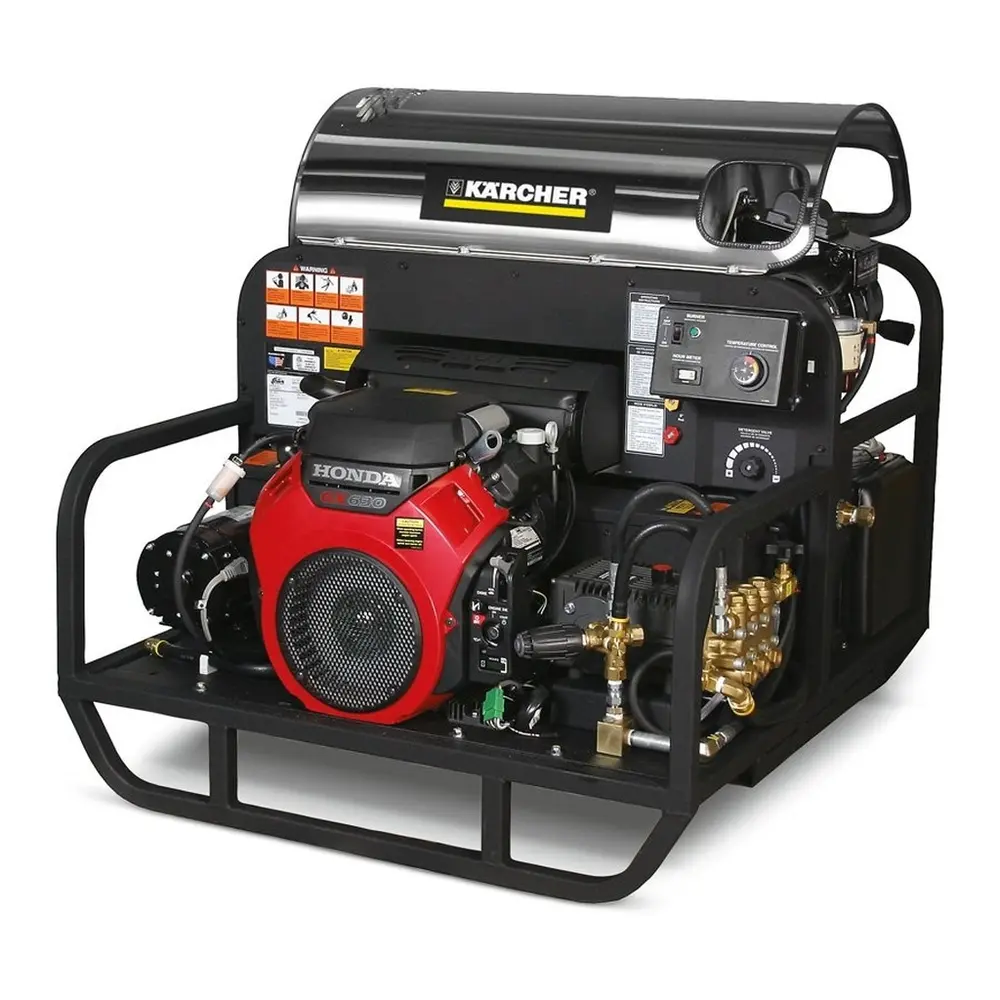

New Karcher Jalapao HDS 4.7/35 Pe Cage Hot Water Pressure Washer with 12V DC Burner
Our Take (from the SES Sales Team)
“The Jalapao HDS 4.7/35 Pe Cage is an industrial hot water skid built to bolt into a truck or onto a trailer, aimed at fleet washers, mobile wash contractors, heavy equipment yards and plants. An electric-start Honda GX630 turns a belt-driven Kärcher KT pump for 4.7 gpm at 3,500 psi, and an oil-fired burner heats the water. This version, 1.575-603.0, has a 12V DC burner.
What stands out is how it is built for daily duty. The engine and pump sit on a shock-mounted sub-frame with eight vibration isolators, the belt runs in an enclosed guard with TrueTrak tensioning, and a 2.5 gal float tank feeds soap and helps prevent pump cavitation. Steam combination comes standard, and a rupture disc rated to 7,000 psi protects the operator.
The trade-off is size. Kärcher lists it at 855 lb, so it needs a truck bed, trailer or fixed wash bay. Kärcher also builds this model with a 120V AC burner (1.575-604.0), so pick the burner setup that suits the site.”
Belt-drive hot water skid for truck and trailer mounting.
The Kärcher HDS 4.7/35 Pe Cage (1.575-603.0) is part of the Jalapao series of oil-fired hot water skids. It delivers 4.7 gpm at 3,500 psi from a belt-driven Kärcher KT pump powered by an electric-start Honda GX630 gasoline engine (688 cc). This version uses a 12V DC burner. Steam combination comes standard, and the open frame is designed for mounting in a truck or on a trailer.
The frame is heavy-gauge 1-1/4 in powder-coated steel, and the engine and pump sit on a shock-mounted sub-frame with eight vibration isolators. Cast iron pulleys run inside an enclosed belt guard with TrueTrak belt tension. The machine also has a VRT100 unloader, a rupture disc rated to 7,000 psi, a 2.5 gal float tank, a 50 ft wire braid hose with extended guard and a control box with thermostat and hour meter.
Includes:
- EASY!Force trigger gun
- 50 ft wire braid high-pressure hose with extended guard
Not included: Battery (8.904-051.0) and stackless flue adapter, listed by Kärcher as options
Features:
- 4.7 gpm at 3,500 psi with belt-drive Kärcher KT pump
- Electric-start Honda GX630 engine
- 12V DC oil-fired burner, steam combination standard
- Shock-mounted sub-frame on 8 vibration isolators
- 2.5 gal float tank for high-pressure soap application
