| Models | HD 4.5/32-4 S Ec |
| Operating Pressure | 435-3,200 psi (30-220 bar) |
| Max. Operating Overpressure | 3,600 psi (248 bar) |
| Flow Rate | 2.2-4.5 gpm (8.3-17 L/min) |
| Water Type | Cold water |
| Motor | 10 hp, low-speed 4-pole, air-cooled |
| Power Supply | 440-460 V, 3-phase, 60 Hz |
| Current Draw | 14 A (16 A slow-blow circuit) |
| Pump | Kärcher 3-piston axial pump, brass cylinder head, direct drive |
| Standard Nozzle | 055 |
| Detergent Suction | 0-0.3 gpm (0-1.1 L/min) |
| Detergent Tank | 1.6 gal (6 L) |
| Max. Inlet Water Temperature | 140°F (60°C) |
| Min. Water Supply | 5.3 gpm (20 L/min) |
| Max. Inlet Pressure | 145 psi (10 bar) |
| High-Pressure Hose | 50 ft (15 m), EASY!Lock with ANTI!Twist |
| Spray Lance | 41 in (104 cm) |
| Sound Pressure Level | 72 dB(A) |
| Protection Class | IPX5 |
| Operating Weight | 136.7 lb (62 kg) |
| Dimensions (L x W x H) | 22.0 x 19.7 x 42.9 in (560 x 500 x 1,090 mm) |
| Model Numbers | 1.286-910.0 |
Technical specs may include optional equipment that is not included with all units.

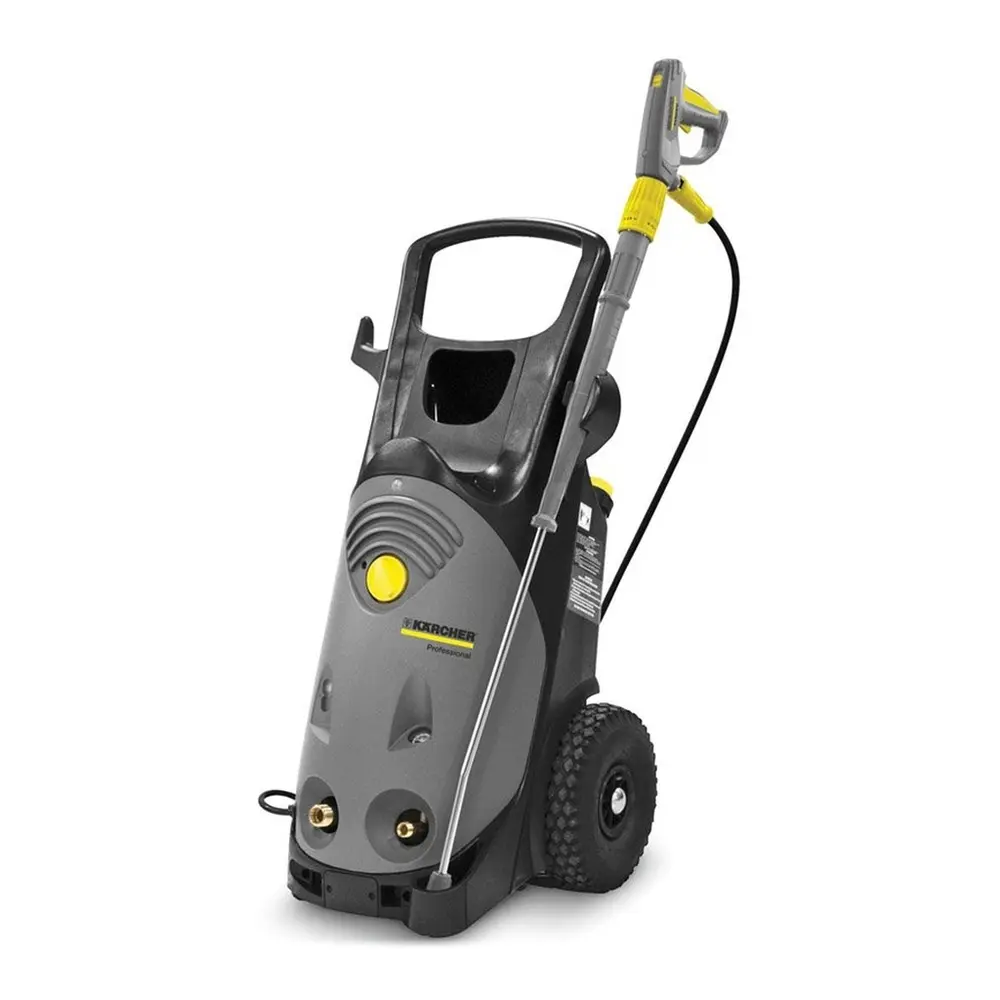

New Karcher HD 4.5/32-4 S Ec Super Class Electric Cold Water Pressure Washer
Our Take (from the SES Sales Team)
“The HD 4.5/32-4 S Ec is the 440-460 V version of Kärcher's Super Class upright washer, for manufacturing plants, processing facilities and large municipal or fleet garages where three-phase 460 V power is already at the wash area. At 14 A it draws far less current than the 230 V Eb, and it delivers up to 4.5 gpm at 3,200 psi, adjustable at the machine down to 435 psi and 2.2 gpm.
It is built for long run times: a low-speed, 4-pole, air-cooled 10 hp motor with protection against voltage swings and overheating, and a 3-piston axial pump with a brass cylinder head, stainless valves and ceramic-coated pistons, guarded by a pressure switch and overflow valve. Kärcher rates it at 72 dB(A), and the upright frame has large wheels, a rear tilting aid, a lance holder and a cable and hose rack.
The trade-off is that it only fits sites with 440-460 V three-phase service and a 16 A slow-blow circuit. At about 137 lb it is a machine for a fixed wash area rather than a truck.”
Upright 460 V three-phase cold water washer for plant wash areas.
The Kärcher HD 4.5/32-4 S Ec (1.286-910.0) is an electric cold water pressure washer from the HD Super Class. A 10 hp, low-speed 4-pole air-cooled motor on 440-460 V three-phase power drives a Kärcher 3-piston axial pump with a brass cylinder head, stainless valves and ceramic-coated pistons. Flow and pressure adjust at the machine from 2.2 to 4.5 gpm and 435 to 3,200 psi.
A pressure switch and overflow valve protect the pump, and built-in motor protection guards against voltage fluctuations and excessive temperatures. The upright frame has large wheels, a rear tilting aid, an integrated lance holder, a parking position for short breaks and a rear cable and hose rack. It comes with an EASY!Force trigger gun, a 41 in spray lance, a 055 power nozzle and a 50 ft EASY!Lock hose with ANTI!Twist.
Includes:
- EASY!Force trigger gun
- 41 in spray lance
- Power nozzle 055
- 50 ft (15 m) EASY!Lock high-pressure hose with ANTI!Twist
Features:
- 435-3,200 psi and 2.2-4.5 gpm, adjustable at the machine
- 10 hp low-speed 4-pole motor on 440-460 V three-phase
- 3-piston axial pump with brass cylinder head and ceramic-coated pistons
- Motor protection against voltage fluctuations and overheating
- Upright frame with large wheels and rear tilting aid
