| Models | Puzzi 30/4 |
| Fresh / Dirty Water Tank | 8 gal (30 L) / 4 gal (15 L) |
| Spray Pressure | 58 psi (4 bar) |
| Spray Rate | 0.8 gpm (3 L/min) |
| Airflow | 157 cfm (74 L/s) |
| Water Lift | 102 in (254 mbar) |
| Floor Nozzle Width | 13.75 in (350 mm) |
| Area Performance | 646-807 sq ft/h (60-75 m²/h) |
| Turbine Power | 1,200 W |
| Pump Power | 70 W |
| Electrical | 120 V, 10 A, 60 Hz |
| Sound Level | 66 dB(A) |
| Power Cord | 50 ft (15 m) |
| Hoses | 13 ft (4 m) spray and suction |
| Weight Without Accessories | 57.3 lb (26 kg) |
| Weight With Accessories | 61.6 lb (27.9 kg) |
| Dimensions (L x W x H) | 23.2 x 18.5 x 30.8 in (590 x 470 x 783 mm) |
| Model Numbers | 1.101-126.0 |
Technical specs may include optional equipment that is not included with all units.

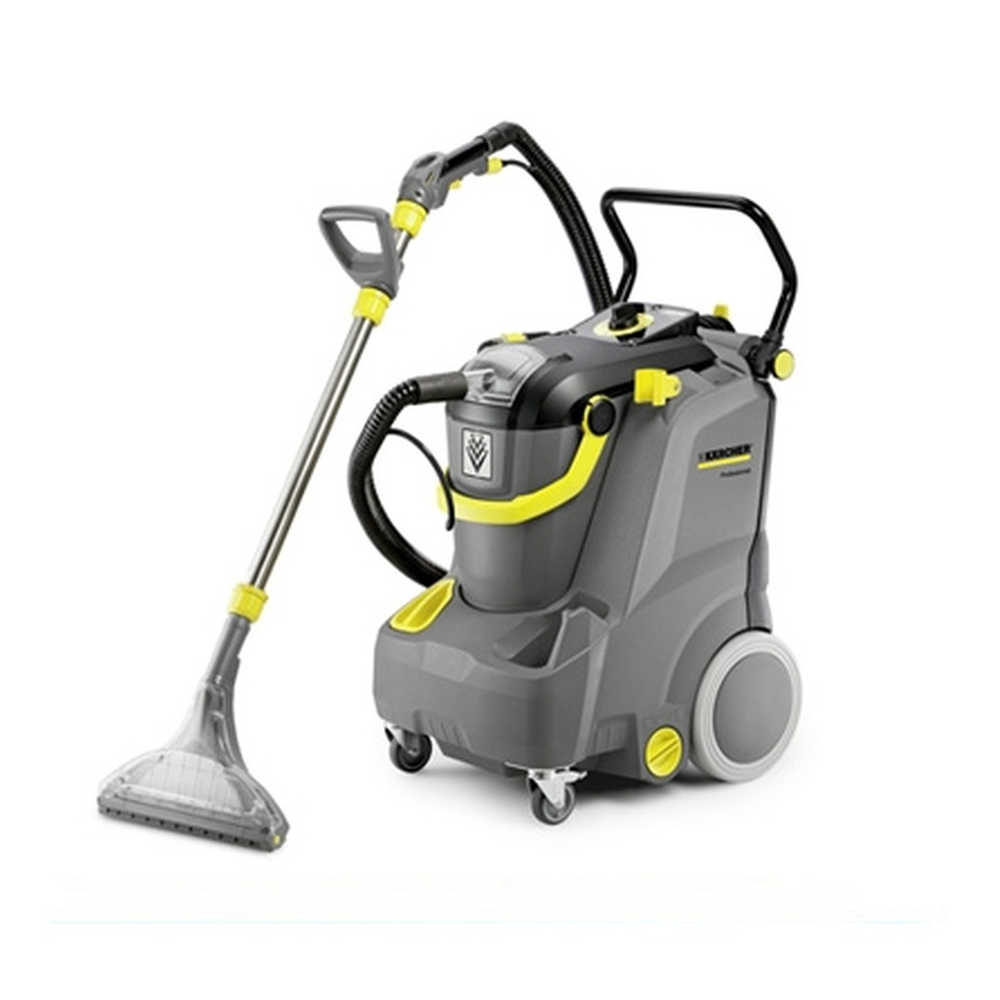

New Karcher Puzzi 30/4 14" Box and Wand Carpet Extractor
Our Take (from the SES Sales Team)
“The Puzzi 30/4 is a box-and-wand carpet extractor for hotels, offices, schools and other buildings with a lot of carpet to keep up between deep cleans. With an 8 gal solution tank and a 13.75 in floor nozzle, Kärcher rates it at 646 to 807 sq ft an hour, enough for corridors and open office areas.

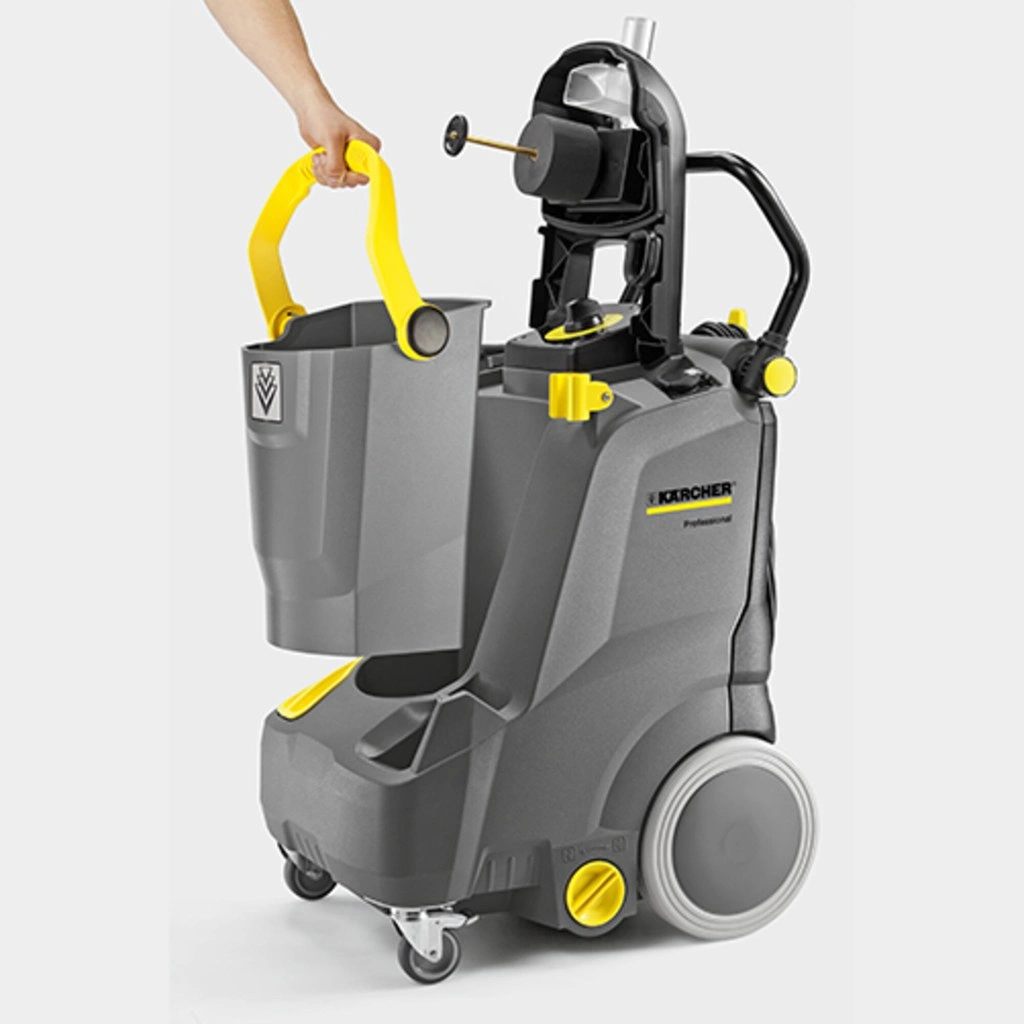

The standout is noise. Kärcher rates it at 66 dB(A), which makes daytime cleaning in occupied spaces realistic. The upright body rolls over thresholds and up and down stairs on large wheels, it can be moved lying on its back with a full tank, and the recovery tank lifts out by its handle and doubles as the bucket for filling the solution tank.
The trade-off is that it has no heater and sprays at 58 psi, so it suits routine maintenance extraction more than heavy restorative cleaning. For heated extraction, Kärcher's Puzzi 64/35 E is the step up. For upholstery and stairs, add the optional upholstery tool.”
Quiet box-and-wand carpet extraction for larger areas.
The Kärcher Puzzi 30/4 (1.101-126.0) is a box-and-wand spray extraction cleaner for large carpeted areas. It holds 8 gal (30 L) of solution and 4 gal (15 L) of recovery, sprays at 58 psi (4 bar) and 0.8 gpm, and recovers with 157 cfm of airflow and 102 in of water lift. Kärcher rates area performance at 646 to 807 sq ft per hour with the 13.75 in flexible floor nozzle.
Kärcher rates the operating noise at 66 dB(A) for cleaning in noise-sensitive areas. The upright design has large wheels for thresholds and stairs, a solution level indicator, an easy-to-reach fill port, a removable fresh water filter and on-board accessory storage. The recovery tank comes out by its handle and can be used to fill the solution tank. It runs on 120 V, 10 A with a 50 ft cord.
Includes:
- 13 ft suction hose with couplings
- 13 ft spray hose
- Flexible floor nozzle, 13.75 in
- Handle with sight glass
- Home Base kit (adapter and cable hook)
Not included: Upholstery tool, crevice nozzle and hard surface adapter, sold separately
Features:
- 66 dB(A) operating noise for daytime cleaning
- 8 gal solution and 4 gal recovery tanks
- Large wheels for thresholds and stairs
- Removable recovery tank doubles as a fill container
- Solution level indicator and on-board accessory storage
