| Models | Puzzi 10/1 |
| Fresh / Dirty Water Tank | 2.6 gal (10 L) / 2.3 gal (9 L) |
| Spray Pressure | 14.5 psi (1 bar) |
| Spray Rate | 0.26 gpm (1 L/min) |
| Airflow | 114 cfm (54 L/s) |
| Water Lift | 88 in (22 kPa) |
| Turbine Power | 1,250 W |
| Pump Power | 40 W |
| Area Performance | 215-269 sq ft/h (20-25 m²/h) |
| Sound Level | 73 dB(A) |
| Voltage | 110-127 V |
| Power Cord | 25 ft (7.6 m) |
| Spray/Suction Hose | 8.2 ft (2.5 m) |
| Weight Without Accessories | 23.6 lb (10.7 kg) |
| Dimensions (L x W x H) | 27.2 x 12.8 x 17.3 in (690 x 325 x 440 mm) |
| Model Numbers | 1.100-133.0 |
Technical specs may include optional equipment that is not included with all units.

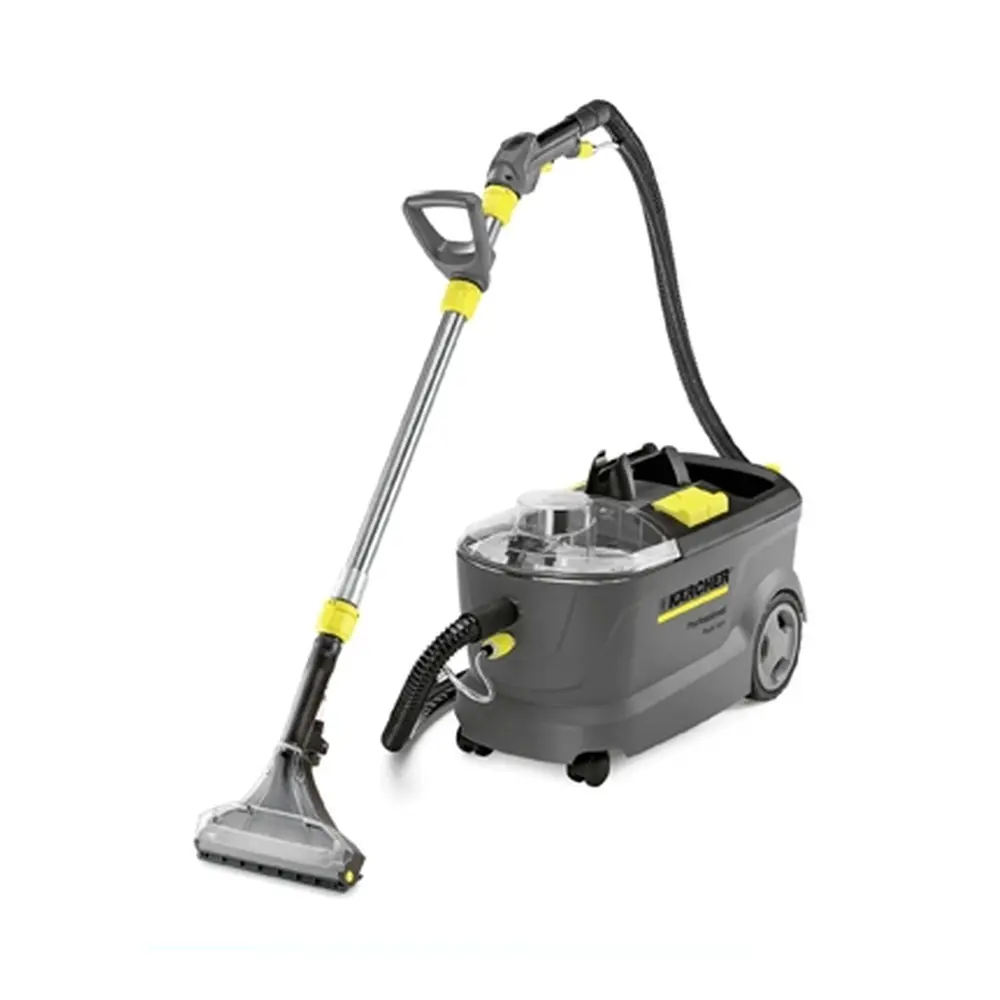

New Karcher Puzzi 10/1 Compact Carpet Extractor
Our Take (from the SES Sales Team)
“The Puzzi 10/1 is a compact spray extractor for spot work and small jobs: upholstery, stairs, car interiors, office chairs and smaller carpeted rooms. It is the machine to grab when a spill or stain needs attention now and a full-size carpet extractor would be more than the job needs.
It sprays solution at 14.5 psi and pulls it straight back with 88 in of water lift, leaving very little moisture behind. The 2.6 gal fresh water tank and 2.3 gal dirty water tank share one removable container, the clear dome lid shows the recovery working, and a foot switch turns it on without bending. At 23.6 lb it is easy to carry up stairs.
The trade-off is that in its US configuration it is an upholstery and spotting tool. The box has the 8 ft spray/suction hose and the upholstery nozzle; the 240 mm floor wand and handhold are separate accessories. For regular carpet work over larger areas, the Puzzi 30/4 is the better fit.”
Compact spray extraction for upholstery and spot cleaning.
The Kärcher Puzzi 10/1 (1.100-133.0) is a compact spray extraction cleaner for smaller to medium-sized carpets, upholstery and textile surfaces. It sprays cleaning solution at 14.5 psi (1 bar) and 0.26 gpm, and the vacuum picks it up immediately with 114 cfm of airflow and 88 in of water lift, so cleaned surfaces can be used again soon after.
Fresh and dirty water share one removable container holding 2.6 gal (10 L) and 2.3 gal (9 L). A transparent dome lid shows the recovery at a glance, a foot switch turns the machine on and off, and swivel casters and a carrying handle with a wand clip make it easy to move. The suction hose is crush-resistant with an ultrasonically welded detergent tube.
Includes:
- 8 ft spray/suction hose with integrated water feed
- Upholstery nozzle
Not included: Floor wand (240 mm) and handhold, sold separately
Features:
- Sprays at 14.5 psi with immediate vacuum recovery
- Removable 2-in-1 fresh and dirty water container
- Transparent dome lid and foot switch
- Crush-resistant suction hose with welded detergent tube
- Swivel casters and carrying handle with wand clip
