| Models | Puzzi 64/35 E |
| Solution Tank | 17 gal (64 L) |
| Recovery Tank | 14 gal (53 L) |
| Pump Pressure | Adjustable up to 500 psi (35 bar) |
| Heater | 1,850 W |
| Vacuum Motors | Two 2-stage |
| Water Lift | 74 in (1,880 mm) |
| Air Flow | 111 cfm (3.1 m³/min) |
| Electrical | 115 V, 60 Hz, 15 A; two cords on separate grounded circuits |
| Power Cords | Two 25 ft (7.6 m) |
| Area Performance | 1,000 sq ft/hr (93 m²/hr) |
| Max. Fill Water Temperature | 130°F (54°C) |
| Wheels | 12 in rear wheels, 4 in swivel casters, 3 in top-mounted loading casters |
| Weight | 139 lb (63 kg) |
| Weight with Full Solution Tank | 282 lb (128 kg) |
| Dimensions (L x W x H) | 32.5 x 22 x 42.25 in (83 x 56 x 107 cm) |
| Model Numbers | 1.006-674.0 |
Technical specs may include optional equipment that is not included with all units.
New Karcher Puzzi 64/35 E Heated Box and Wand Carpet Extractor
Our Take (from the SES Sales Team)
“The Puzzi 64/35 E is the larger heated model in Kärcher's Puzzi box-and-wand line, built for contractors and facility teams who clean bigger carpeted areas and want fewer trips to fill and dump. It carries a 17-gallon solution tank and a 14-gallon recovery tank, with an 1,850-watt heater and a pump that adjusts up to 500 psi.
What stands out is that it combines heat with full pressure. Two two-stage vacuum motors deliver 111 cfm and 74 inches of water lift, and the 12-inch wheels, top-mounted loading casters and on-board storage for cords, hose, wand and chemical keep the whole kit together.
The trade-off is size and power. It weighs 139 pounds empty, and its two 25-foot cords must run on separate grounded circuits. For smaller rooms or tight elevators, the 13-gallon Puzzi 50/14 E is easier to handle. Hose and wand are sold separately, so pick your wand along with the machine.”
A heated 17-gallon box and wand extractor with 500 psi.

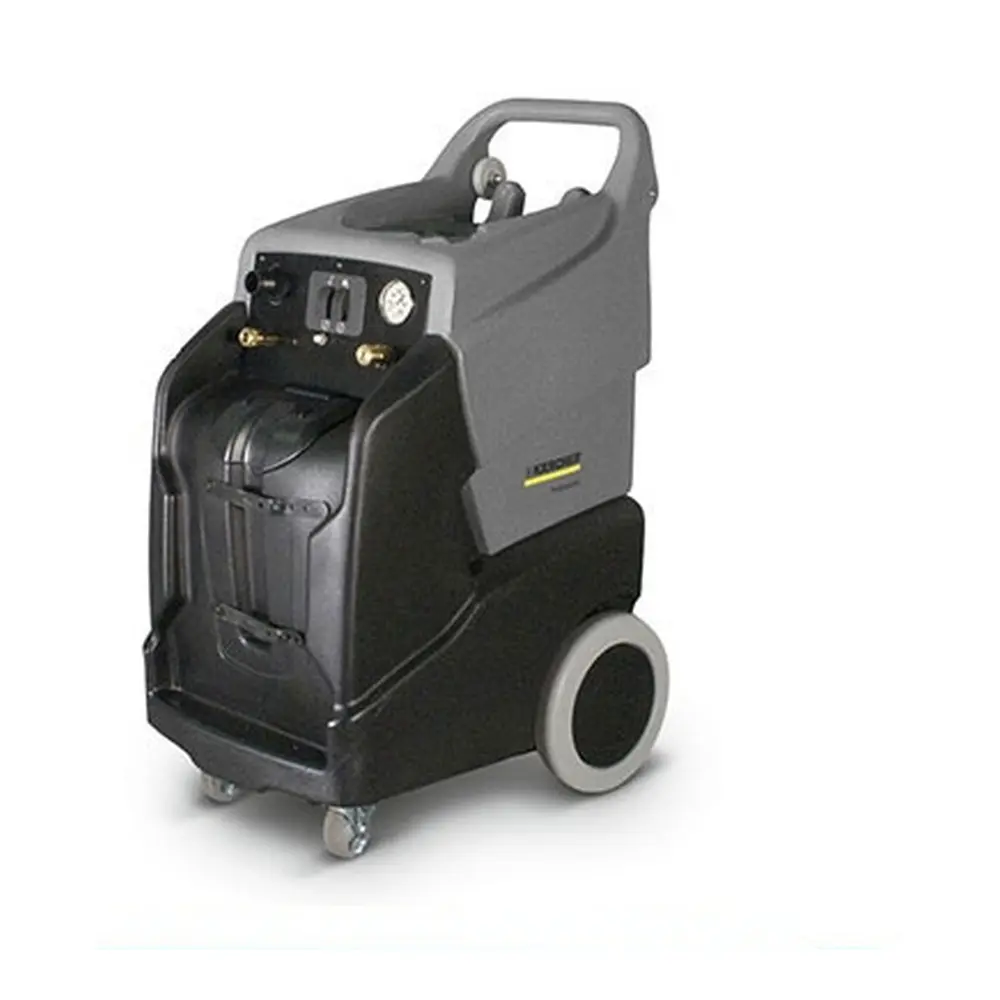

The Kärcher Puzzi 64/35 E is a portable box-and-wand carpet extractor with a 17-gallon solution tank and a 14-gallon recovery tank. An 1,850 W internal water heater adds cleaning power, and spray pressure adjusts up to 500 psi, from delicate upholstery to heavily soiled carpet. Two two-stage vacuum motors deliver 111 cfm of air flow and 74 inches of water lift.
Large 12-inch wheels and a compact body make it easy to move around a facility or between job sites, and top-mounted 3-inch casters help with loading. An on-board carrying system holds cords, hose, wand, chemical and an accessory bucket, and all controls are in one location. It runs on 115 V with two 25 ft cords that plug into separate grounded circuits. Hose and wand are sold separately.
Includes:
- Puzzi 64/35 E extractor with 1,850 W heater
- Two 25 ft power cords
Not included: Vacuum/solution hoses and wand, sold separately.
Features:
- 17 gal solution and 14 gal recovery tanks
- 1,850 W internal water heater
- Spray pressure adjustable up to 500 psi
- Two 2-stage vacuum motors with 111 cfm air flow
- On-board storage for cords, hose, wand, chemical and accessory bucket
