| Models | Puzzi 50/14 E |
| Solution Tank | 13 gal (49 L) |
| Recovery Tank | 11 gal (42 L) |
| Pump Pressure | Adjustable up to 200 psi (14 bar) |
| Heater | 1,850 W |
| Vacuum Motors | Two 2-stage |
| Water Lift | 74 in (1,880 mm) |
| Air Flow | 111 cfm (3.1 m³/min) |
| Electrical | 115 V, 60 Hz, 15 A; two cords on separate grounded circuits |
| Power Cords | Two 25 ft (7.6 m) |
| Area Performance | 1,000 sq ft/hr (93 m²/hr) |
| Max. Fill Water Temperature | 130°F (54°C) |
| Wheels | 12 in rear wheels, 4 in swivel casters, 3 in top-mounted loading casters |
| Weight | 134 lb (61 kg) |
| Dimensions (L x W x H) | 30 x 22 x 43 in (76 x 56 x 109 cm) |
| Model Numbers | 1.006-673.0 |
Technical specs may include optional equipment that is not included with all units.

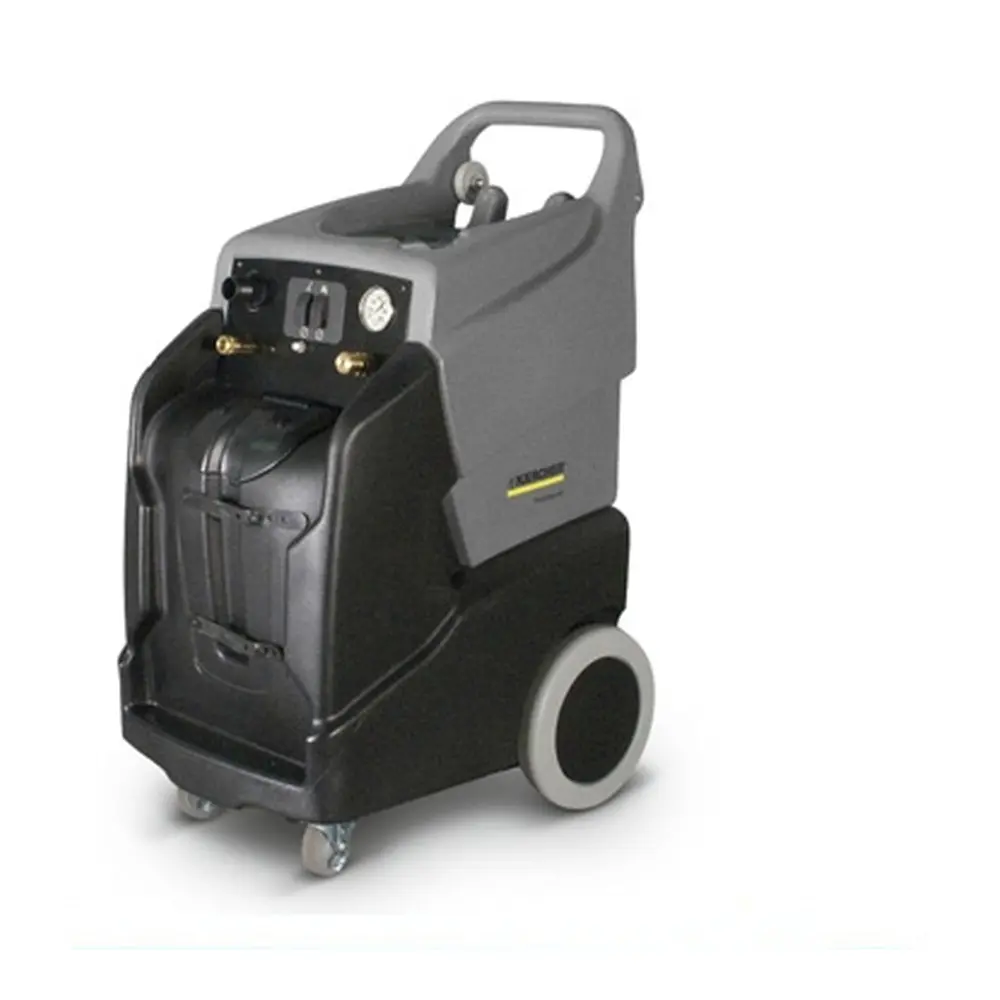

New Karcher Puzzi 50/14 E Heated Box and Wand Carpet Extractor
Our Take (from the SES Sales Team)
“The Puzzi 50/14 E is a heated box-and-wand carpet extractor for crews that clean carpet and upholstery where heat helps loosen soil, such as hotel rooms, offices and restaurants. An 1,850-watt heater warms the solution on board, and the pump adjusts up to 200 psi for carpet and upholstery tools.
What stands out is the airflow. Two two-stage vacuum motors move 111 cfm, and the 13-gallon solution and 11-gallon recovery tanks, 12-inch wheels and top-mounted loading casters keep it easy to move from job to job. The controls, including the heater switch and temperature light, are grouped in one spot.
Plan your power before the first job: it uses two 25-foot cords that must go into separate grounded circuits, because the heater alone draws 15 amps. If you need more pressure for heavy traffic lanes, the unheated Puzzi 50/35 C runs up to 500 psi. Hose and wand are sold separately, so choose your tools with the machine.”
A heated box and wand extractor with an 1,850-watt heater.
The Kärcher Puzzi 50/14 E is a portable box-and-wand carpet extractor with an 1,850 W internal water heater for added cleaning power. Spray pressure adjusts up to 200 psi for carpet and upholstery work. Two two-stage vacuum motors deliver 111 cfm of air flow and 74 inches of water lift, and the machine carries a 13-gallon solution tank and an 11-gallon recovery tank.
Large 12-inch wheels and top-mounted 3-inch casters make it easy to move and load, and an on-board carrying system holds cords, hose, wand, chemical and an accessory bucket. All controls, including the heater switch and temperature light, are in one location. It runs on 115 V with two 25 ft cords that plug into separate grounded circuits. Hose and wand are sold separately.
Includes:
- Puzzi 50/14 E extractor with 1,850 W heater
- Two 25 ft power cords
Not included: Vacuum/solution hoses and wand, sold separately.
Features:
- 1,850 W internal water heater
- Spray pressure adjustable up to 200 psi
- Two 2-stage vacuum motors with 111 cfm air flow
- 13 gal solution and 11 gal recovery tanks
- On-board storage for cords, hose, wand, chemical and accessory bucket
