| Models | Puzzi 50/35 C |
| Solution Tank | 13 gal (49 L) |
| Recovery Tank | 11 gal (42 L) |
| Pump Pressure | Adjustable up to 500 psi (35 bar) |
| Vacuum Motor | One 3-stage |
| Water Lift | 107 in (2,718 mm) |
| Air Flow | 73 cfm (2.1 m³/min) |
| Heater | None |
| Electrical | 115 V, 60 Hz, 15 A |
| Power Cord | 40 ft (12.2 m) with inline GFCI |
| Area Performance | 1,000 sq ft/hr (93 m²/hr) |
| Max. Fill Water Temperature | 130°F (54°C) |
| Wheels | 12 in rear wheels, 4 in swivel casters, 3 in top-mounted loading casters |
| Weight | 115 lb (52 kg) |
| Weight with Full Solution Tank | 222 lb (101 kg) |
| Dimensions (L x W x H) | 30 x 22 x 43 in (76 x 56 x 109 cm) |
| Model Numbers | 1.006-672.0 |
Technical specs may include optional equipment that is not included with all units.

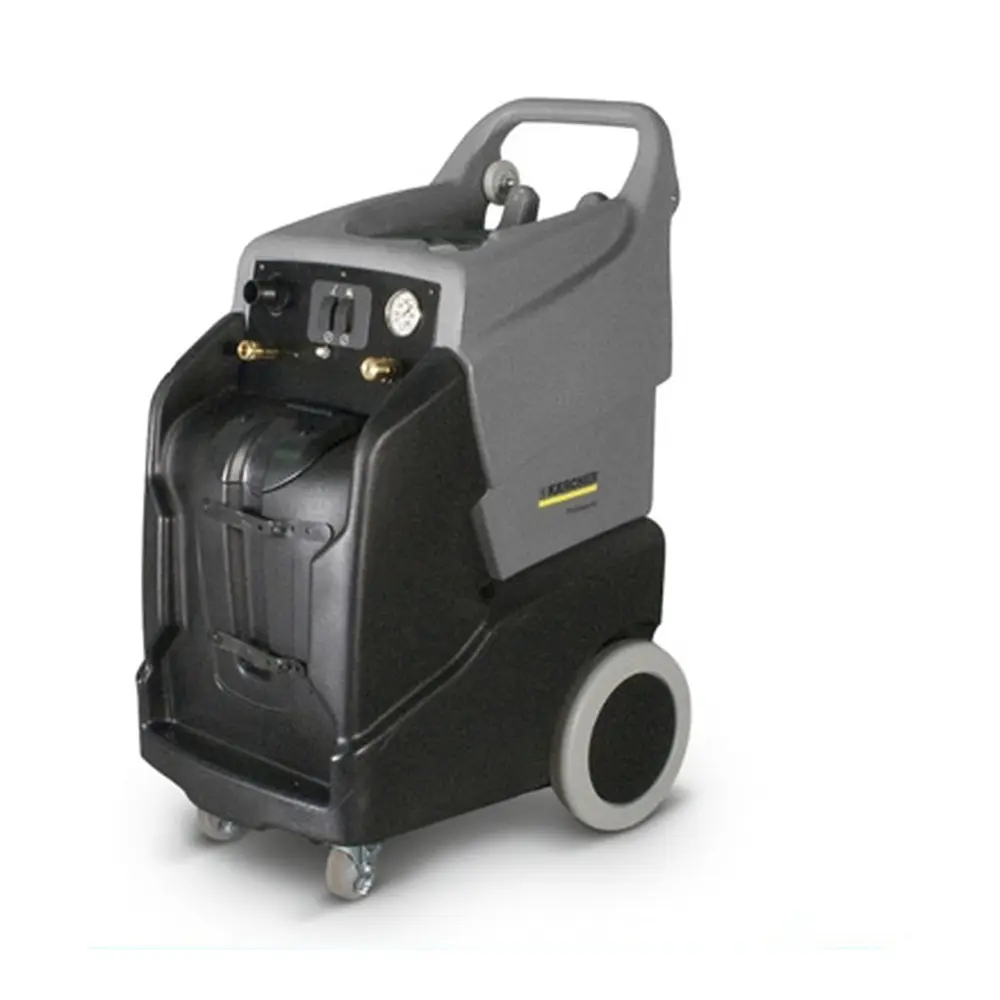

New Karcher Puzzi 50/35 C Box and Wand Carpet Extractor
Our Take (from the SES Sales Team)
“The Puzzi 50/35 C is a box-and-wand carpet extractor for building service contractors, hotels and facility teams that clean carpet and upholstery in rooms too small or too spread out for a walk-behind extractor. Its pump adjusts up to 500 psi, so the same machine can run an upholstery tool or a floor wand on heavy-traffic carpet.
What stands out is the vacuum and the layout. A single three-stage vacuum motor gives 107 inches of water lift to pull water back out of the carpet. The 13-gallon solution and 11-gallon recovery tanks, 12-inch wheels and top-mounted casters for loading make it practical to move between floors, and all the controls sit in one place.
This is the unheated, single-cord model, on a 40-foot cord with an inline GFCI. If you want heat, look at the Puzzi 50/14 E, which trades pressure (200 psi) for an 1,850-watt heater and two vacuum motors. Hose and wand are separate, so plan your tool kit along with the machine.”
A 500 psi box and wand extractor with a 13-gallon tank.
The Kärcher Puzzi 50/35 C is a portable box-and-wand carpet extractor with a 13-gallon solution tank and an 11-gallon recovery tank. Spray pressure adjusts up to 500 psi, low enough for delicate upholstery and high enough for heavily soiled carpet. A single three-stage vacuum motor provides 107 inches of water lift and 73 cfm, and Kärcher rates area performance at 1,000 sq ft per hour.
Large 12-inch wheels and a compact body make it easy to move around a facility or between job sites, and top-mounted 3-inch casters help with loading and unloading. An on-board carrying system holds cords, hose, wand, chemical and an accessory bucket, and all controls are in one place. It runs on 115 V, 15 A through a 40 ft cord with an inline GFCI. Hose and wand are sold separately.
Includes:
- Puzzi 50/35 C extractor
- 40 ft power cord with inline GFCI
Not included: Vacuum/solution hoses and wand, sold separately.
Features:
- Spray pressure adjustable up to 500 psi
- Single 3-stage vacuum motor with 107 in water lift
- 13 gal solution and 11 gal recovery tanks
- On-board storage for cords, hose, wand, chemical and accessory bucket
- All controls in one place; easy access to service components
