| Models | EDIC Galaxy 5 500BX-HRH-TK Kit |
| Extractor | Galaxy 5 500BX-HR, heat-ready |
| Solution / Recovery Tanks | 5 gal / 4 gal (18.9 L / 15.1 L) |
| Solution Pressure | 120 psi |
| Vacuum Motor | Single 3-stage, 136 in (339 mbar) water lift |
| Heater | Heat N'Run external, 2000 W, 16.6 A |
| Heater Power Cord | 50 ft (15.2 m), detachable |
| Heat-Up Time | 1.5 to 3 minutes |
| Wand | Triton, dual stainless steel jets |
| Wand Weight | 6.5 lb (2.9 kg) |
| Wand Construction | Aircraft aluminum tube, brass spray tube, UHMW glide |
| Wand Valve Rating | 1200 psi |
| Hose Assembly | 25 ft (7.6 m) vacuum hose and high-pressure solution line |
| Extractor Power Cord | 25 ft (7.6 m), detachable |
| Extractor Dimensions (H x L x W) | 28 x 24.5 x 16 in (711 x 622 x 406 mm) |
| Extractor Weight | 57 lb (25.9 kg) |
| Model Numbers | 500BX-HRH-TK (Galaxy 5 500BX-HR extractor, 2000 W Heat N'Run heater, Triton dual-jet wand, 25 ft hose assembly) |
Technical specs may include optional equipment that is not included with all units.
New EDIC Galaxy 5 500BX-HRH-TK Carpet Extractor Kit with Heater and Triton Wand
Our Take (from the SES Sales Team)
“This kit is EDIC's ready-to-work package around the compact Galaxy 5. It pairs the 5-gallon, 120 psi heat-ready extractor with a 2000-watt Heat N'Run external heater, a Triton carpet wand and a 25 ft vacuum hose and solution line, so a small carpet cleaning business, property manager or detailer can start hot-water extraction with everything matched.
The Triton is the reason to pick this kit over the Glidemaster version. It weighs 6.5 lb, rides on a low-friction UHMW glide, and aims its two stainless steel jets so the spray patterns don't overlap. The heater hangs on the back of the extractor, keeps heat out of the motor compartment, and is ready in about 1.5 to 3 minutes.
Plan for power before the first job: EDIC says the heater and the extractor must plug into separate outlets on separate circuits. The trade-off with any 5-gallon unit is more refills and dumps on big rooms; for larger carpeted areas, look at EDIC's 12-gallon Galaxy 2000 kits.”
A complete hot-water carpet cleaning kit built around the compact Galaxy 5.

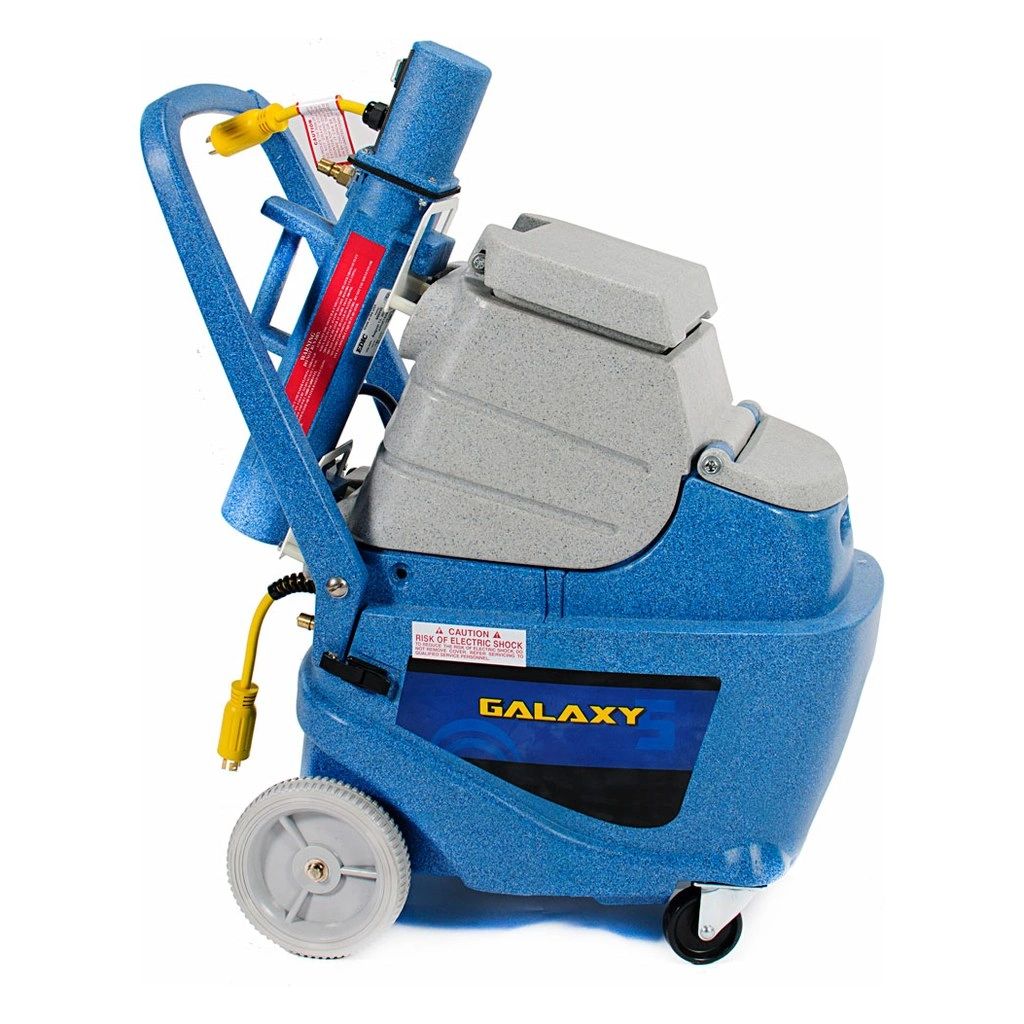

The EDIC 500BX-HRH-TK kit combines the Galaxy 5 500BX-HR heat-ready portable extractor with a 2000-watt Heat N'Run external heater, a Triton carpet wand with dual jets, and a 25 ft vacuum hose and high-pressure solution line. The extractor has a 5-gallon solution tank, a 4-gallon recovery tank, a 120 psi pump and a single 3-stage vacuum motor with 136 inches of water lift.
The Heat N'Run heater mounts on the back of the extractor, draws 16.6 amps and runs on its own 50 ft power cord. The Triton wand weighs 6.5 lb and has an aircraft aluminum wand tube, UHMW glide, brass spray tube, stainless steel jets and a 1200 psi valve. The extractor weighs 57 lb, has a fold-down handle and runs on a 25 ft detachable cord.
Includes:
- Galaxy 5 500BX-HR heat-ready extractor
- Heat N'Run 2000 W external heater with 50 ft power cord
- Triton dual-jet carpet wand
- 25 ft vacuum hose and high-pressure solution line
Features:
- Galaxy 5 extractor with 5 gal solution and 4 gal recovery tanks
- 120 psi pump and single 3-stage vacuum, 136 in water lift
- 2000 W Heat N'Run external heater on its own 50 ft cord
- Triton dual-jet carpet wand, 6.5 lb, UHMW glide
- 25 ft vacuum hose and high-pressure solution line
