| Models | B 50 W Bp R55 AGM |
| Cleaning Path | 22 in (550 mm) |
| Brush Head | R55 cylindrical roller brush with pre-sweep |
| Squeegee Width | 33 in (850 mm), parabolic |
| Solution / Recovery Tank | 13.2 / 13.2 gal (50 / 50 L) |
| Coarse Dirt Container | 0.9 gal (3.5 L) |
| Brush Contact Pressure | 34 lb (15.5 kg) |
| Drive | Wheel (traction) drive |
| Travel Speed | Up to 3.7 mph (6 km/h) |
| Battery | 24 V AGM, 115 Ah |
| Charger | On-board, 100–240 V, 50–60 Hz |
| Sound Pressure Level (Normal / Eco) | 65 / 62 dB(A) |
| Brush Head and Squeegee | Die-cast aluminum |
| Max. Working Slope | 2% |
| Weight with Batteries | 427 lb (194 kg) |
| Dimensions (L x W x H) | 52 x 22.5 x 42 in (132 x 57 x 107 cm) |
| Model Numbers | 9.176-020.0 |
Technical specs may include optional equipment that is not included with all units.
New Karcher B 50 W Bp R55 22" Cylindrical Traction Drive Floor Scrubber
Our Take (from the SES Sales Team)
“The B 50 W Bp R55 is a full-size walk-behind scrubber for warehouses, factories, schools, retail floors and other large hard-surface areas where a compact machine runs out of tank. It cleans a 22 in path with a cylindrical roller brush, carries 13.2 gal of solution and recovery, and wheel drive moves it at up to 3.7 mph, so the operator steers instead of pushing a 427 lb machine.
What stands out is the R55 head on textured and dirty floors. The roller brush pre-sweeps coarse debris into a small container as it scrubs, and the brush head and 33 in parabolic squeegee are die-cast aluminum, built to hold blade pressure through tight turns and on uneven surfaces. A yellow key limits operators to everyday settings, while a grey key gives supervisors the rest.
Two things to weigh. This is the AGM battery version, which Kärcher does not offer in California; a lithium-ion R55 is a separate model. And on smooth floors where water use matters most, the O51 orbital head is the alternative to look at.”
“Fantastic service and easy application and approval process. It only took a few minutes and our new floor scrubber was on its way.” — Mike T., Google review
A 22 in cylindrical walk-behind scrubber with wheel drive and 13.2 gal tanks.

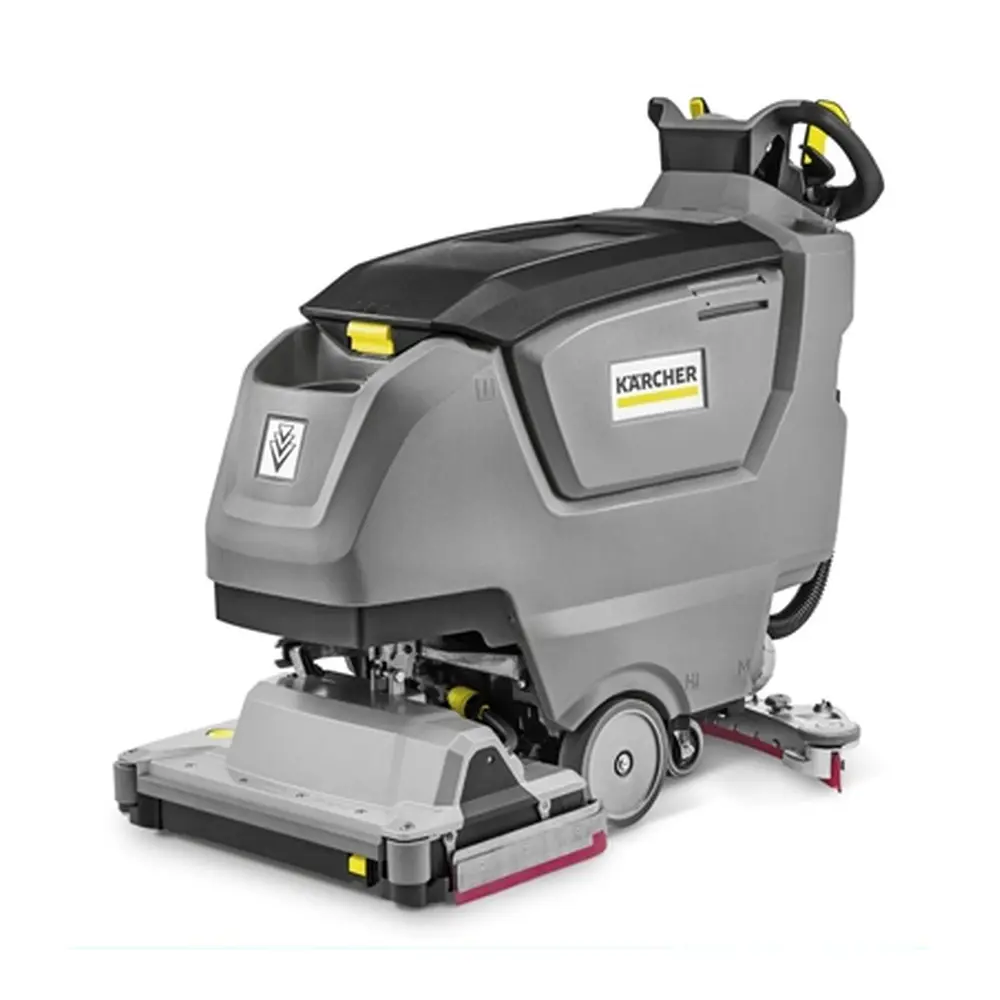

The Kärcher B 50 W Bp R55 (9.176-020.0) is a battery walk-behind scrubber with the R55 cylindrical brush head, which cleans a 22 in path and pre-sweeps coarse debris into a small container. It has 13.2 gal solution and recovery tanks, a 33 in parabolic squeegee and 34 lb of brush contact pressure. Wheel drive moves the machine at up to 3.7 mph.

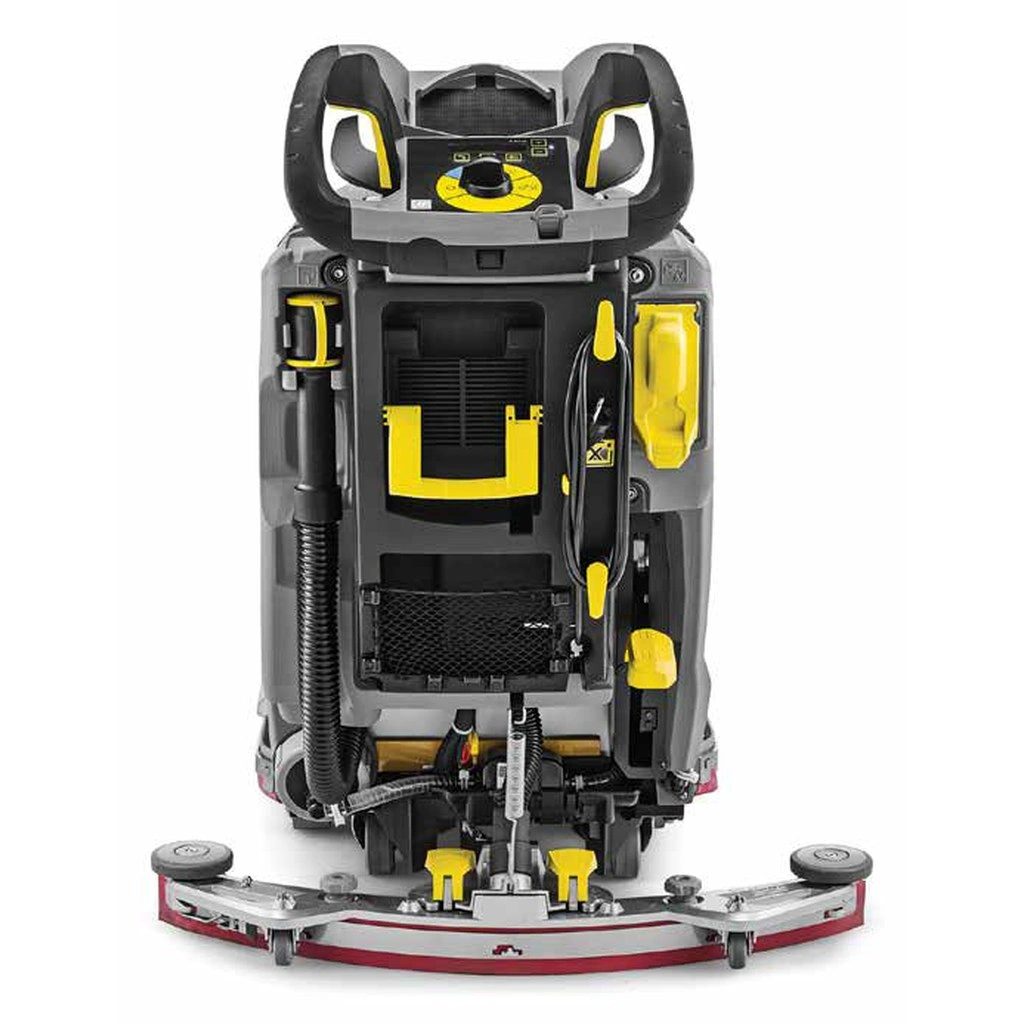

This version runs on a 24 V AGM battery with an on-board charger rated for 100 to 240 V. The brush head and squeegee are die-cast aluminum, and the squeegee attaches with two quick-release clamps while the recovery hose stays on its bracket. The machine weighs 427 lb with batteries and runs at 65 dB(A), or 62 dB(A) in Eco mode. Auto-Fill and Machine Connect app support are available as options.
Includes:
- R55 medium roller brush
- Linatex squeegee blade set, 33 in
- Parabolic squeegee bar, 33 in
- AGM battery
- On-board charger
- Yellow and grey Intelligent Keys
Not included: Auto-Fill and Machine Connect kit, sold separately
Features:
- Wheel drive at up to 3.7 mph
- R55 roller brush pre-sweeps coarse debris while scrubbing
- Die-cast aluminum brush head and parabolic squeegee
- Squeegee removes with two quick-release clamps
- On-board charger for the 24 V AGM battery
